Typical performance

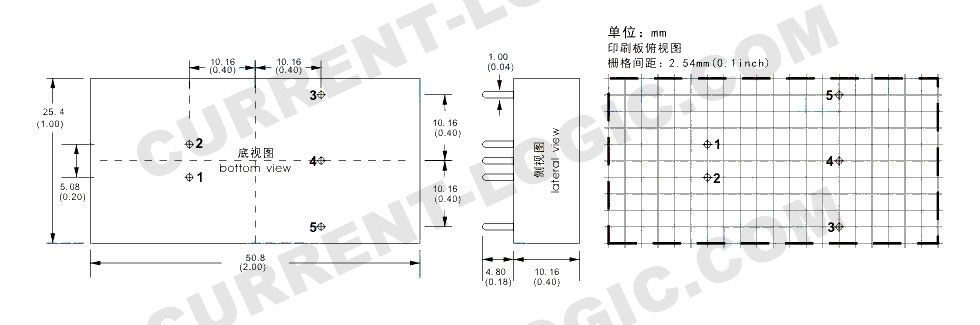

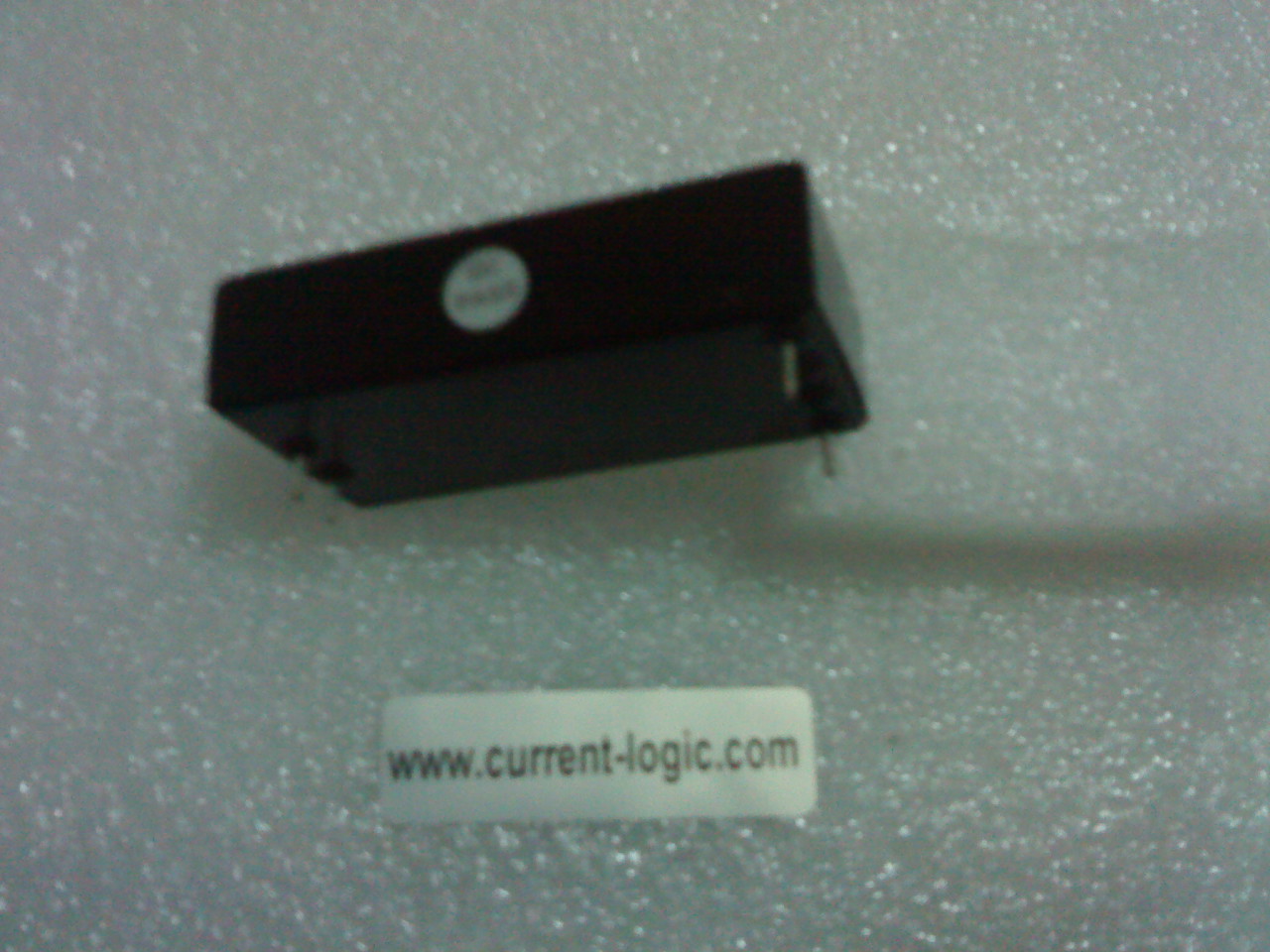

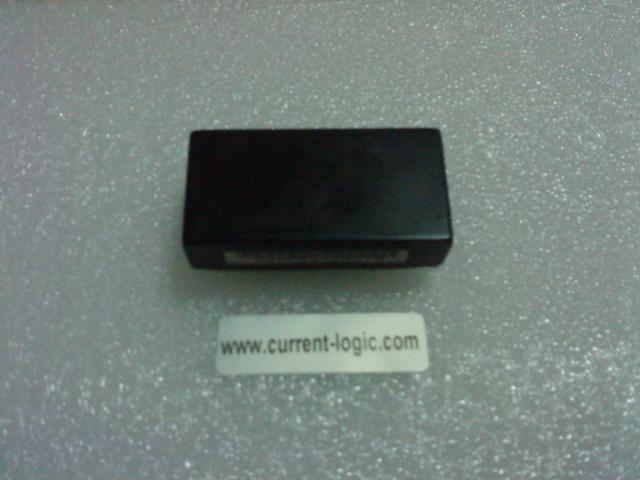

- Size: 50.8*25.4*12.7mm
- Wide Input voltage range (2:1 or 4:1)
- Typical Efficiency 85%
- Switching frequency：300KHz ± 30 KHz
- Over current/Short circuit protection,Self-furbish
- Input-output isolate (500/1000/1500/2000Vdc)
- PCB mount, on-board type
- Metal case, Low Output Ripple
Technology parameter
Test condition: Genneral Nominal Line,Tc=25℃，Rated resistant load unless other wise specified
| Input |
Min |
Nom |
Max |
Notes |
| |
9 |
12 |
18 |
W 2:1 |
| Input voltage |
18 |
24 |
36 |
W 2:1 |
|
36 |
48 |
72 |
W 2:1 |
|
72 |
110 |
144 |
W 2:1 |
|
10 |
12 |
36 |
W 4:1 |
|
18 |
48 |
72 |
W 4:1 |
| Remote ON/OFF |
|
|
ON when linked to high elec level |
3.5Vdc~+Vin |
|
|
|
Off when linked to Ground |
≤0.3Vdc |
| Input undervoltage protection |
Shut down when input islower than the mimimum input voltage，Self-recover |
|
|
|
|
| Output accuracy |
|
Vo1 |
±1.0% |
| Line regulation |
Rated Load，full voltage range |
Vo1 |
±0.2% |
| Load regulation |
20% ~ 100% of rated load |
Vo1 |
±0.5% |
| Ripple and noise |
20MHz, Vo≤5.0V, ≤50mVp-p; |
Vo≥48V, ≤180mVp-p; |
Other, ≤100mVp-p; |
| Dynamic response |
25% of rated power as increment |
△Vo1/△t |
±4.0/500us% |
| Voltage adjust |
Nominal output |
TRIM |
±10% adjustable |
| Start time |
Typical value |
|
≤200mS |
|
| Efficiency |
Nominal input,Full load |
Vo≤5.0V,80%(Typical) |
Vo>5.0V，87%(Typical) |
| Switching frequency |
|
300KHz (Typical) |
Max 330KHz |
| Operating temperature |
Natural breeze |
Industrial level |
-25℃ ~ +55℃ |
|
|
Military grade |
-40℃ ~ +85℃ |
| Storage temperature |
|
Industrial grade |
-40℃ ~ +105℃ |
|
|
Military grade |
-55℃ ~ +120℃ |
| Max case temperature |
|
Industrial grade |
+100℃ |
|
|
Military grade |
+110℃ |
| Relative humidity |
|
|
10%~90% |
| case material |
|
|
Metal case |
| Isolation Voltage |
input-output 500/1000/1500/2000 Vdc ≤0.5mA/1min, input-case 500Vdc ≤0.5mA/1min |
|
|
| (MTBF) |
2X100,000Hrs |
|
|
|
| ① |
Current Logic Brand |
| ② |
convert type：D(DC-DC) |
| ③ |
power |
| - |
- |
| ④ |
nominal input |
| ⑤ |
S - single output |
| ⑥ |
output volt |
| ⑦ |
J - military，G - non-isolated, I - dual output, isolated with each other, W-ultra wide input 4：1, default is industrial grade and isolated
|
|
| Part NO. |
Input range |
Output 1 |
Output 2 |
Output 3 |
| V |
mA |
V |
mA |
V |
mA |
| CLD10-05S3V3 |
5V（4.5~9） |
3.3V |
2000mA |
|
|
|
|
| CLD10-12S3V3 |
12V（9~18）；12V（10~36）W |
3.3V |
2000mA |
|
|
|
|
| CLD10-24S3V3 |
24V（18~36） |
3.3V |
2000mA |
|
|
|
|
| CLD10-48S3V3 |
48V（36~72）；48V（18~72）W |
3.3V |
2000mA |
|
|
|
|
| CLD10-110S3V3 |
110V（72~144） |
3.3V |
2000mA |
|
|
|
|
| CLD10-05S05 |
5V（4.5~9） |
5V |
2000mA |
|
|
|
|
| CLD10-12S05 |
12V（9~18）；12V（10~36）W |
5V |
2000mA |
|
|
|
|
| CLD10-24S05 |
24V（18~36） |
5V |
2000mA |
|
|
|
|
| CLD10-48S05 |
48V（36~72）；48V（18~72）W |
5V |
2000mA |
|
|
|
|
| CLD10-110S05 |
110V（72~144） |
5V |
2000mA |
|
|
|
|
| CLD10-05S09 |
5V（4.5~9） |
9V |
1110mA |
|
|
|
|
| CLD10-12S09 |
12V（9~18）；12V（10~36）W |
9V |
1110mA |
|
|
|
|
| CLD10-24S09 |
24V（18~36） |
9V |
1110mA |
|
|
|
|
| CLD10-48S09 |
48V（36~72）；48V（18~72）W |
9V |
1110mA |
|
|
|
|
| CLD10-110S09 |
110V（72~144） |
9V |
1110mA |
|
|
|
|
| CLD10-05S12 |
5V（4.5~9） |
12V |
830mA |
|
|
|
|
| CLD10-12S12 |
12V（9~18）；12V（10~36）W |
12V |
830mA |
|
|
|
|
| CLD10-24S12 |
24V（18~36） |
12V |
830mA |
|
|
|
|
| CLD10-48S12 |
48V（36~72）；48V（18~72）W |
12V |
830mA |
|
|
|
|
| CLD10-110S12 |
110V（72~144） |
12V |
830mA |
|
|
|
|
| CLD10-05S15 |
5V（4.5~9） |
15V |
660mA |
|
|
|
|
| CLD10-12S15 |
12V（9~18）；12V（10~36）W |
15V |
660mA |
|
|
|
|
| CLD10-24S15 |
24V（18~36） |
15V |
660mA |
|
|
|
|
| CLD10-48S15 |
48V（36~72）；48V（18~72）W |
15V |
660mA |
|
|
|
|
| CLD10-110S15 |
110V（72~144） |
15V |
660mA |
|
|
|
|
| CLD10-05S24 |
5V（4.5~9） |
24V |
410mA |
|
|
|
|
| CLD10-12S24 |
12V（9~18）；12V（10~36）W |
24V |
410mA |
|
|
|
|
| CLD10-24S24 |
24V（18~36） |
24V |
410mA |
|
|
|
|
| CLD10-48S24 |
48V（36~72）；48V（18~72）W |
24V |
410mA |
|
|
|
|
| CLD10-110S24 |
110V（72~144） |
24V |
410mA |
|
|
|
|
| CLD12-05S3V3 |
5V（4.5~9） |
3.3V |
2400mA |
|
|
|
|
| CLD12-12S3V3 |
12V（9~18）；12V（10~36）W |
3.3V |
2400mA |
|
|
|
|
| CLD12-24S3V3 |
24V（18~36） |
3.3V |
2400mA |
|
|
|
|
| CLD12-48S3V3 |
48V（36~72）；48V（18~72）W |
3.3V |
2400mA |
|
|
|
|
| CLD12-110S3V3 |
110V（72~144） |
3.3V |
2400mA |
|
|
|
|
| CLD12-05S05 |
5V（4.5~9） |
5V |
2400mA |
|
|
|
|
| CLD12-12S05 |
12V（9~18）；12V（10~36）W |
5V |
2400mA |
|
|
|
|
| CLD12-24S05 |
24V（18~36） |
5V |
2400mA |
|
|
|
|
| CLD12-48S05 |
48V（36~72）；48V（18~72）W |
5V |
2400mA |
|
|
|
|
| CLD12-110S05 |
110V（72~144） |
5V |
2400mA |
|
|
|
|
| CLD12-05S09 |
5V（4.5~9） |
9V |
1330mA |
|
|
|
|
| CLD12-12S09 |
12V（9~18）；12V（10~36）W |
9V |
1330mA |
|
|
|
|
| CLD12-24S09 |
24V（18~36） |
9V |
1330mA |
|
|
|
|
| CLD12-48S09 |
48V（36~72）；48V（18~72）W |
9V |
1330mA |
|
|
|
|
| CLD12-110S09 |
110V（72~144） |
9V |
1330mA |
|
|
|
|
| CLD12-05S12 |
5V（4.5~9） |
12V |
1000mA |
|
|
|
|
| CLD12-12S12 |
12V（9~18）；12V（10~36）W |
12V |
1000mA |
|
|
|
|
| CLD12-24S12 |
24V（18~36） |
12V |
1000mA |
|
|
|
|
| CLD12-48S12 |
48V（36~72）；48V（18~72）W |
12V |
1000mA |
|
|
|
|
| CLD12-110S12 |
110V（72~144） |
12V |
1000mA |
|
|
|
|
| CLD12-05S15 |
5V（4.5~9） |
15V |
800mA |
|
|
|
|
| CLD12-12S15 |
12V（9~18）；12V（10~36）W |
15V |
800mA |
|
|
|
|
| CLD12-24S15 |
24V（18~36） |
15V |
800mA |
|
|
|
|
| CLD12-48S15 |
48V（36~72）；48V（18~72）W |
15V |
800mA |
|
|
|
|
| CLD12-110S15 |
110V（72~144） |
15V |
800mA |
|
|
|
|
| CLD12-05S24 |
5V（4.5~9） |
24V |
500mA |
|
|
|
|
| CLD12-12S24 |
12V（9~18）；12V（10~36）W |
24V |
500mA |
|
|
|
|
| CLD12-24S24 |
24V（18~36） |
24V |
500mA |
|
|
|
|
| CLD12-48S24 |
48V（36~72）；48V（18~72）W |
24V |
500mA |
|
|
|
|
| CLD12-110S24 |
110V（72~144） |
24V |
500mA |
|
|
|
|
| CLD15-12S05 |
12V（9~18）；12V（10~36）W |
5V |
3000mA |
|
|
|
|
| CLD15-24S05 |
24V（18~36） |
5V |
3000mA |
|
|
|
|
| CLD15-48S05 |
48V（36~72）；48V（18~72）W |
5V |
3000mA |
|
|
|
|
| CLD15-110S05 |
110V（72~144） |
5V |
3000mA |
|
|
|
|
| CLD15-12S09 |
12V（9~18）；12V（10~36）W |
9V |
1660mA |
|
|
|
|
| CLD15-24S09 |
24V（18~36） |
9V |
1660mA |
|
|
|
|
| CLD15-48S09 |
48V（36~72）；48V（18~72）W |
9V |
1660mA |
|
|
|
|
| CLD15-110S09 |
110V（72~144） |
9V |
1660mA |
|
|
|
|
| CLD15-12S12 |
12V（9~18）；12V（10~36）W |
12V |
1250mA |
|
|
|
|
| CLD15-24S12 |
24V（18~36） |
12V |
1250mA |
|
|
|
|
| CLD15-48S12 |
48V（36~72）；48V（18~72）W |
12V |
1250mA |
|
|
|
|
| CLD15-110S12 |
110V（72~144） |
12V |
1250mA |
|
|
|
|
| CLD15-12S15 |
12V（9~18）；12V（10~36）W |
15V |
1000mA |
|
|
|
|
| CLD15-24S15 |
24V（18~36） |
15V |
1000mA |
|
|
|
|
| CLD15-48S15 |
48V（36~72）；48V（18~72）W |
15V |
1000mA |
|
|
|
|
| CLD15-110S24 |
110V（72~144） |
15V |
1000mA |
|
|
|
|
| CLD15-12S24 |
12V（9~18）；12V（10~36）W |
24V |
625mA |
|
|
|
|
| CLD15-24S24 |
24V（18~36） |
24V |
625mA |
|
|
|
|
| CLD15-48S24 |
48V（36~72）；48V（18~72）W |
24V |
625mA |
|
|
|
|
| CLD15-110S24 |
110V（72~144） |
24V |
625mA |
|
|
|
|
| CLD10-05D3V3 |
5V（4.5~9） |
+3.3V |
+1000mA |
-3.3V |
-1000mA |
|
|
| CLD10-12D3V3 |
12V（9~18）；12V（10~36）W |
+3.3V |
+1000mA |
-3.3V |
-1000mA |
|
|
| CLD10-24D3V3 |
24V（18~36） |
+3.3V |
+1000mA |
-3.3V |
-1000mA |
|
|
| CLD10-48D3V3 |
48V（36~72）；48V（18~72）W |
+3.3V |
+1000mA |
-3.3V |
-1000mA |
|
|
| CLD10-110D3V3 |
110V（72~144） |
+3.3V |
+1000mA |
-3.3V |
-1000mA |
|
|
| CLD10-05D05 |
5V（4.5~9） |
+5V |
+1000mA |
-5V |
-1000mA |
|
|
| CLD10-12D05 |
12V（9~18）；12V（10~36）W |
+5V |
+1000mA |
-5V |
-1000mA |
|
|
| CLD10-24D05 |
24V（18~36） |
+5V |
+1000mA |
-5V |
-1000mA |
|
|
| CLD10-48D05 |
48V（36~72）；48V（18~72）W |
+5V |
+1000mA |
-5V |
-1000mA |
|
|
| CLD10-110D05 |
110V（72~144） |
+5V |
+1000mA |
-5V |
-1000mA |
|
|
| CLD10-05D09 |
5V（4.5~9） |
+9V |
+550mA |
-9V |
-550mA |
|
|
| CLD10-12D09 |
12V（9~18）；12V（10~36）W |
+9V |
+550mA |
-9V |
-550mA |
|
|
| CLD10-24D09 |
24V（18~36） |
+9V |
+550mA |
-9V |
-550mA |
|
|
| CLD10-48D09 |
48V（36~72）；48V（18~72）W |
+9V |
+550mA |
-9V |
-550mA |
|
|
| CLD10-110D09 |
110V（72~144） |
+9V |
+550mA |
-9V |
-550mA |
|
|
| CLD10-05D12 |
5V（4.5~9） |
+12V |
+410mA |
-12V |
-410mA |
|
|
| CLD10-12D12 |
12V（9~18）；12V（10~36）W |
+12V |
+410mA |
-12V |
-410mA |
|
|
| CLD10-24D12 |
24V（18~36） |
+12V |
+410mA |
-12V |
-410mA |
|
|
| CLD10-48D12 |
48V（36~72）；48V（18~72）W |
+12V |
+410mA |
-12V |
-410mA |
|
|
| CLD10-110D12 |
110V（72~144） |
+12V |
+410mA |
-12V |
-410mA |
|
|
| CLD10-05D15 |
5V（4.5~9） |
+15V |
+330mA |
-15V |
-330mA |
|
|
| CLD10-12D15 |
12V（9~18）；12V（10~36）W |
+15V |
+330mA |
-15V |
-330mA |
|
|
| CLD10-24D15 |
24V（18~36） |
+15V |
+330mA |
-15V |
-330mA |
|
|
| CLD10-48D15 |
48V（36~72）；48V（18~72）W |
+15V |
+330mA |
-15V |
-330mA |
|
|
| CLD10-110D15 |
110V（72~144） |
+15V |
+330mA |
-15V |
-330mA |
|
|
| CLD10-05D24 |
5V（4.5~9） |
+24V |
+210mA |
-24V |
-210mA |
|
|
| CLD10-12D24 |
12V（9~18）；12V（10~36）W |
+24V |
+210mA |
-24V |
-210mA |
|
|
| CLD10-24D24 |
24V（18~36） |
+24V |
+210mA |
-24V |
-210mA |
|
|
| CLD10-48D24 |
48V（36~72）；48V（18~72）W |
+24V |
+210mA |
-24V |
-210mA |
|
|
| CLD10-110D24 |
110V（72~144） |
+24V |
+210mA |
-24V |
-210mA |
|
|
| CLD12-05D3V3 |
5V（4.5~9） |
+3.3V |
+1200mA |
-3.3V |
-1200mA |
|
|
| CLD12-12D3V3 |
12V（9~18）；12V（10~36）W |
+3.3V |
+1200mA |
-3.3V |
-1200mA |
|
|
| CLD12-24D3V3 |
24V（18~36） |
+3.3V |
+1200mA |
-3.3V |
-1200mA |
|
|
| CLD12-48D3V3 |
48V（36~72）；48V（18~72）W |
+3.3V |
+1200mA |
-3.3V |
-1200mA |
|
|
| CLD12-110D3V3 |
110V（72~144） |
+3.3V |
+1200mA |
-3.3V |
-1200mA |
|
|
| CLD12-05D05 |
5V（4.5~9） |
+5V |
+1200mA |
-5V |
-1200mA |
|
|
| CLD12-12D05 |
12V（9~18）；12V（10~36）W |
+5V |
+1200mA |
-5V |
-1200mA |
|
|
| CLD12-24D05 |
24V（18~36） |
+5V |
+1200mA |
-5V |
-1200mA |
|
|
| CLD12-48D05 |
48V（36~72）；48V（18~72）W |
+5V |
+1200mA |
-5V |
-1200mA |
|
|
| CLD12-110D05 |
110V（72~144） |
+5V |
+1200mA |
-5V |
-1200mA |
|
|
| CLD12-05D09 |
5V（4.5~9） |
+9V |
+660mA |
-9V |
-660mA |
|
|
| CLD12-12D09 |
12V（9~18）；12V（10~36）W |
+9V |
+660mA |
-9V |
-660mA |
|
|
| CLD12-24D09 |
24V（18~36） |
+9V |
+660mA |
-9V |
-660mA |
|
|
| CLD12-48D09 |
48V（36~72）；48V（18~72）W |
+9V |
+660mA |
-9V |
-660mA |
|
|
| CLD12-110D09 |
110V（72~144） |
+9V |
+660mA |
-9V |
-660mA |
|
|
| CLD12-05D12 |
5V（4.5~9） |
+12V |
+500mA |
-12V |
-500mA |
|
|
| CLD12-12D12 |
12V（9~18）；12V（10~36）W |
+12V |
+500mA |
-12V |
-500mA |
|
|
| CLD12-24D12 |
24V（18~36） |
+12V |
+500mA |
-12V |
-500mA |
|
|
| CLD12-48D12 |
48V（36~72）；48V（18~72）W |
+12V |
+500mA |
-12V |
-500mA |
|
|
| CLD12-110D12 |
110V（72~144） |
+12V |
+500mA |
-12V |
-500mA |
|
|
| CLD12-05D15 |
5V（4.5~9） |
+15V |
+400mA |
-15V |
-400mA |
|
|
| CLD12-12D15 |
12V（9~18）；12V（10~36）W |
+15V |
+400mA |
-15V |
-400mA |
|
|
| CLD12-24D15 |
24V（18~36） |
+15V |
+400mA |
-15V |
-400mA |
|
|
| CLD12-48D15 |
48V（36~72）；48V（18~72）W |
+15V |
+400mA |
-15V |
-400mA |
|
|
| CLD12-110D15 |
110V（72~144） |
+15V |
+400mA |
-15V |
-400mA |
|
|
| CLD12-05D24 |
5V（4.5~9） |
+24V |
+250mA |
-24V |
-250mA |
|
|
| CLD12-12D24 |
12V（9~18）；12V（10~36）W |
+24V |
+250mA |
-24V |
-250mA |
|
|
| CLD12-24D24 |
24V（18~36） |
+24V |
+250mA |
-24V |
-250mA |
|
|
| CLD12-48D24 |
48V（36~72）；48V（18~72）W |
+24V |
+250mA |
-24V |
-250mA |
|
|
| CLD12-110D24 |
110V（72~144） |
+24V |
+250mA |
-24V |
-250mA |
|
|
| CLD15-12D05 |
12V（9~18）；12V（10~36）W |
+5V |
+1500mA |
-5V |
-1500mA |
|
|
| CLD15-24D05 |
24V（18~36） |
+5V |
+1500mA |
-5V |
-1500mA |
|
|
| CLD15-48D05 |
48V（36~72）；48V（18~72）W |
+5V |
+1500mA |
-5V |
-1500mA |
|
|
| CLD15-110D05 |
110V（72~144） |
+5V |
+1500mA |
-5V |
-1500mA |
|
|
| CLD15-12D09 |
12V（9~18）；12V（10~36）W |
+9V |
+830mA |
-9V |
-830mA |
|
|
| CLD15-24D09 |
24V（18~36） |
+9V |
+830mA |
-9V |
-830mA |
|
|
| CLD15-48D09 |
48V（36~72）；48V（18~72）W |
+9V |
+830mA |
-9V |
-830mA |
|
|
| CLD15-110D09 |
110V（72~144） |
+9V |
+830mA |
-9V |
-830mA |
|
|
| CLD15-12D12 |
12V（9~18）；12V（10~36）W |
+12V |
+625mA |
-12V |
-625mA |
|
|
| CLD15-24D12 |
24V（18~36） |
+12V |
+625mA |
-12V |
-625mA |
|
|
| CLD15-48D12 |
48V（36~72）；48V（18~72）W |
+12V |
+625mA |
-12V |
-625mA |
|
|
| CLD15-110D12 |
110V（72~144） |
+12V |
+625mA |
-12V |
-625mA |
|
|
| CLD15-12D15 |
12V（9~18）；12V（10~36）W |
+15V |
+500mA |
-15V |
-500mA |
|
|
| CLD15-24D15 |
24V（18~36） |
+15V |
+500mA |
-15V |
-500mA |
|
|
| CLD15-48D15 |
48V（36~72）；48V（18~72）W |
+15V |
+500mA |
-15V |
-500mA |
|
|
| CLD15-110D15 |
110V（72~144） |
+15V |
+500mA |
-15V |
-500mA |
|
|
| CLD15-12D24 |
12V（9~18）；12V（10~36）W |
+24V |
+310mA |
-24V |
-310mA |
|
|
| CLD15-24D24 |
24V（18~36） |
+24V |
+310mA |
-24V |
-310mA |
|
|
| CLD15-48D24 |
48V（36~72）；48V（18~72）W |
+24V |
+310mA |
-24V |
-310mA |
|
|
| CLD15-110D24 |
110V（72~144） |
+24V |
+310mA |
-24V |
-310mA |
| PIN |
1 |
2 |
3 |
4 |
5 |
| Single output（S） |
-Vin |
+Vin |
+Vout |
NP |
GND |
| Dual Output（D） |
-Vin |
+Vin |
+Vout1 |
COM |
-Vout2 |
|
|
|
