Typical performance
  • Size: 50.8*25.4*12.7mm
  • Wide Input voltage range
  • Typical Efficiency 75%
  • Switching frequency：60KHz
  • Over current/Short circuit protection,Self-furbish
  • Input-output isolated
  • PCB mount, on-board type
  • Metal case
Technology parameter
Test condition: Genneral Nominal Line,Tc=25℃，Rated resistant load unless other wise specified
Input Min Nom Max Notes
Input voltage (AC) 165(200Vdc) 220 265(380Vdc) N
85(120Vdc) 220 265(380Vdc) W
Remote ON/OFF NO
Output
Output accuracy Vo1;Vo2 ±1.0%;±2.0%
Line regulation Rated Load，full voltage range Vo1;Vo2 ±0.2%;±0.5%
Load regulation 20% ~ 100% of rated load Vo1;Vo2 ±0.5%;±3.0%
Ripple and noise 20MHz, Vo≤5.0V, ≤80mVp-p; Vo≥48V, ≤180mVp-p; Other, ≤120mVp-p;
Start time Typical value ≤1S
General Characteristic
Efficiency Nominal input,Full load Vo≤5.0V,75%(Typical) Vo>5.0V，77%(Typical)
Switching frequency 60KHz (Typical)
Operating temperature Natural breeze Industrial level -25℃ ~ +65℃
Storage temperature Industrial grade -40℃ ~ +105℃
Max case temperature Industrial grade +80℃
Relative humidity 10%~90%
case material Metal case
Isolation Voltage input-output 2.5KV ≤10mA/1min
Isolation Voltage input-case 1.5KV ≤10mA/1min
(MTBF) 2X100,000Hrs
Ordering info
  • CL
    A
    3
    -
    220
    S
    12
    N
    ①
    ②
    ③
    -
    ④
    ⑤
    ⑥
    ⑦
① Current Logic Brand
② convert type：A(AC-DC)
③ power
- -
④ nominal input
⑤ S - single output, D - dual output
⑥ output volt
⑦

N-narrow input, W-wide input, default is wide intput
Part NO. Input range Output 1 Output 2 Output 3
V mA V mA V mA
CLA3-220S3V3 85~265VAC；120~380VDC 3.3V 600mA
CLA3-220S05 85~265VAC；120~380VDC 5V 600mA
CLA3-220S06 85~265VAC；120~380VDC 6V 500mA
CLA3-220S09 85~265VAC；120~380VDC 9V 330mA
CLA3-220S12 85~265VAC；120~380VDC 12V 250mA
CLA3-220S15 85~265VAC；120~380VDC 15V 200mA
CLA3-220S18 85~265VAC；120~380VDC 18V 160mA
CLA3-220S24 85~265VAC；120~380VDC 24V 120mA
CLA3-220S48 85~265VAC；120~380VDC 48V 60mA
CLA3-220D3V3 85~265VAC；120~380VDC +3.3V +300mA -3.3V -300mA
CLA3-220D05 85~265VAC；120~380VDC +5V +300mA -5V -300mA
CLA3-220D06 85~265VAC；120~380VDC +6V +250mA -6V -250mA
CLA3-220D09 85~265VAC；120~380VDC +9V +165mA -9V -165mA
CLA3-220D12 85~265VAC；120~380VDC +12V +125mA -12V -125mA
CLA3-220D15 85~265VAC；120~380VDC +15V +100mA -15V -100mA
CLA3-220D24 85~265VAC；120~380VDC +24V +60mA -25V -60mA
CLA3-220D48 85~265VAC；120~380VDC +48V +30mA -48V 30 mA
Temperature graph

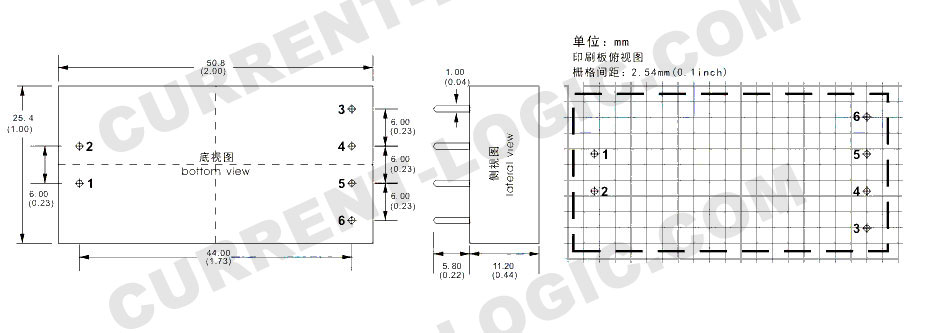

Dimension
PIN 1 2 3 4 5 6
Single Output（S） AC(N) AC(L) +Vout NP NP GND
Dual Output（D） AC(N) AC(L) +Vo1 COM COM -Vo2
Dual Isolated Output（DI） AC(N) AC(L) +Vo1 GND1 +Vo2 GND2
