DIN rail DC-DC Converter

Order Online - DIN Rail mount converters

General spec

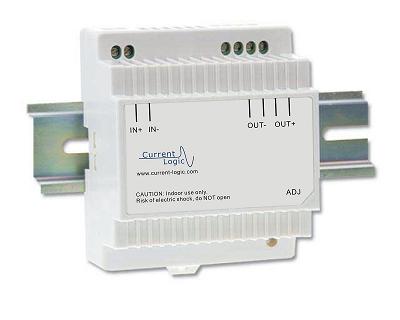

Current-Logic.com now provides a series of DIN rail mount DC-DC Converters, can quickly snap onto a DIN rail with built-in DIN rail clips that require no additional brackets. They can also be directly mounted on a panel. Plastic enclosure keep fingers free from potential electric shock.

Our first series is for non-isolated dc-dc converters that can can provide up to around 150W continuously. These DC-DC Converters can snap-on mount on 35mm DIN rail, and have the versatility to be used in a broad range of applications. As always these converters have overload and short circuit protection, input voltage can be from a regulated source (power supply) or un-regulated source (battery, solar cells)

24V to 12V, 120W converter was the first module to be moved from former waterproof case to this DIN rail mount case. Our customers are very pleased with our waterproof series non-isolated converters, because of its small size and powerful and at the same time against moisture. The din rail mountable converter is as powerful as the waterproof units. When this article is written, it is the most powerful DIN rail mount dc-dc converter we found on the internet.

We are expanding the DIN rail mount power supply family. More converters like 12V to 24V step up converters, 12/24V to 5V converters etc will have DIN rail mount version soon. Isolated converters with DIN rail mount enclosure will also be available in short time.

New Feature:
  • Industrial design, more tightly regulated and lower error, lower ripples.
    Former low cost non-isolated series are for both commercial and industrial usage, so ripple and errors are not controlled as tight as pure industrial products. Since DIN rail mount converters are mainly used in industrial field, we've upgraded the circuit to provide better performance.
  • Adjustable output voltage.
    Most our waterproof non-isolated converters are not adjustable. The main reason is the sealed case is not a good choice to integrate the adjustable function; and also because the current is usually big (a few to a few tens Amps), adjustable function will make the output not so precise.
    New DIN rail dc-dc converter has an improved circuit to keep the output regulated as fixed output, at the same time provide a small range adjustable output. User can tune the output to exactly the output voltage they need.




10-30V to 5V, 50W converter is now available in DIN rail mount enclosure. Customers now can order through this link:

DIN rail mount 12/24V to 5V converter

The output can be tuned between 4.5~5.1VDC.





10-15V to 24V, 100W converter is now available in DIN rail mount enclosure. Customers now can order through this link:

DIN rail mount 12V to 24V boost converter

The output can be tuned between 23~25VDC.
